The QHY5III678M/C is the latest addition to the QHY new Version 2 line of QHY5III Series planetary cameras and guiders.
This model may be considered an enhanced version of its predecessor, the
Like the IMX178, Sony’s new IMX678 is a back-illuminated 1/1.8-inch format sensor. However, the IMX678 has higher resolution and higher QE plus enhanced NIR sensitivity.
Extended Near Infrared Sensitivity
In this latest generation of sensors, the photodiode portion of the IMX678’s pixel well is physically deeper than in previous sensors, allowing photons of longer wavelengths to penetrate deeper into the substrate. This dramatically increases the sensor’s sensitivity to red and near-infrared (NIR) light. The sensor displays almost equal peak sensitivity to NIR light as it does to light in the visible spectrum.
In addition, the QHY5III678M/C cameras are built on the new v.2 platform with improved features.
QHY5IIISeries V2 Introduction512MB DDR3
New Front-end Design with Better CompatibilityQHY5III (Ver. 2) series cameras have adopted a new front-end design with better compatibility. Here we only take QHY5III200M as example, however, ALL V2 cams in the future share these features.
The BFL of V2 cam is only 8mm, which means you can easily fit a V2 cam with your OAG. The basic top adapter includes 1.25 inch threads and you can still use your 1.25 inch filter.

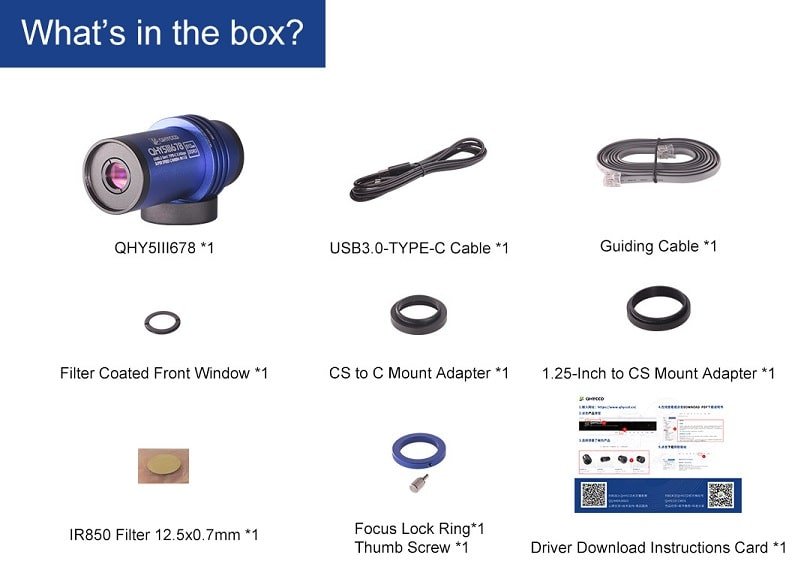

The top adapter glass of V2 can be easily switched. One of the advantage of changeable top glasses is you can use one filter even you’re using Lens! You can add a 1.25inch-cs adapter to connect CS lens, or add a second CS-C lens for C-mount lens. The two adapters are all standard accessories of V2 cams.
USB 3.2 Gen1 Type C Interface
Tips: It is recommended to use the official standard Type-C data cable of QHYCCD. As the market is flooded with numerous poor-quality Type-C cables, casual use may lead to the camera malfunctioning. If you use your own spare cable, please confirm it is a high-quality cable.
Universal Guiding Interface
The custom interfaces of the previous generation of planetary cameras and guiders has been replaced in the QHY5III (Ver.2) cameras with a more universal ST-4 compatible guiding interface. Now, even if the guiding cable is lost or damaged, you will be able to easily get a replacement on the market at a low cost. Indicator LED
|
The QHY5III (Ver. 2) series planetary and guiding cameras are all equipped with a 512 MB DDR3 image buffer which can effectively reduce the pressure on computer transmission. A great help for planetary photography, which often requires writing a large amount of data in a short period of time. Some deep-sky astrophotography cameras on the market today only have 256 MB, for example.
In comparison, the 512 MB DDR3 memory of the new 5III (Ver. 2) series cameras represents a significant upgrade.
By the way, there’s a 1.25 inch filter wheel adapter to connect your mono planetary cam with
The new QHY5III (Ver.2) series cameras all use the USB3.2 Gen1 Type-C interface. Compared to the USB3.0 Type-B interface used in the previous generation, the Type-C interface has a longer life and is more flexible.
The new QHY5III (Ver.2) series of cameras is equipped with a status indicator at the back of the camera. If the camera experiences an abnormal status, the multi-colored indicator light will help to determine the situation, with different colors signifying different conditions. During normal operation, this indicator light is off, so there is no worry about light contaminating the image.Specifications
| Model | QHY5III678M/C |
| CMOS Sensor | Sony IMX678 BSI Sensor – Mono or Color |
| Pixel Size | 2.0 um*2.0um |
| Effective Pixel Area | 3856 x 2180 |
| Effective Pixels | 8.4 Mega Pixel |
| Max. FPS | 41 FPS at 12-bits |
| Read Noise | 3.3e- to 0.56e |
| AD Sample Depth | 12bit (output as 16bit and 8bit) |
| Built-in Image Buffer | 512MB DDR3 Memory |
| Shutter Type | Electric Rolling Shutter |
| Computer Interface | USB3.2 Gen1 Type-C |
| Guide Port | st4 |
| Telescope Interface | 1.25-inch, compatible with CS or C-mount by changing the front-end connector (IR-Cut filter and IR850nm filter) |
| Back Focal Length | 8 mm |
| Weight | 90g |
Curves
Mechanical dimensions
