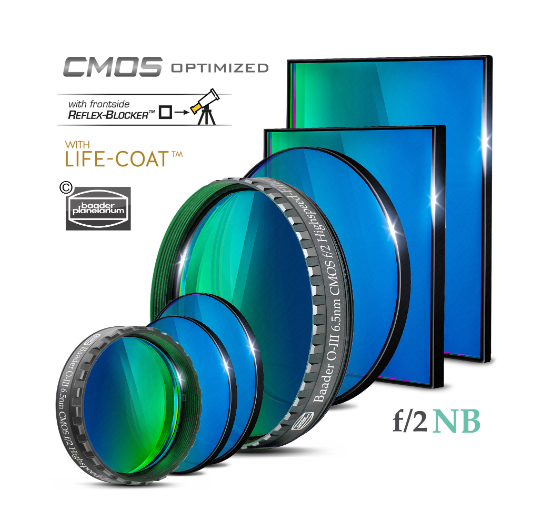

Baader O-III f/2 Highspeed-Filters (6.5nm) – CMOS-optimized
- Baader O-III f/2 Highspeed Filter – Precision Grade
- 6.5 nm FWHM, recommended for extremely fast optical systems from f/3.4 and faster
- Specially designed for the special filter requirements when used with extremely fast f/2 optics like the Celestron RASA astrographs
- Reflex-Blocker™ hard coated and planeoptically polished – with sealed coating edges (Life-Coat™)
- Blackened edges all around, with filter-lead-side-indicator in the form of a telescope-sided black outer rim
- Optimized for modern CMOS cameras, but likewise excellent for CCD camera technologies
Transmission curve
 |
Technical Data:
| FILTER SIZE | 1 25 inch | 2 inch | 36mm. |
|---|---|---|---|
| MANUFACTURER | Baader Planetarium | Baader Planetarium | Baader Planetarium |
| SKU (#) | 2961225 | 2961228 | 2961227 |
| EAN CODE | 4047825047267 | 4047825047298 | 4047825047281 |
| WEIGHT (KG) | 0.01 | 0.01 | 0.00 |
| TRANSMISSION RANGE | O-III | O-III | O-III |
| FILTER THICKNESS (WITHOUT CELL) | 2 mm | 2 mm | 2 mm |
| HBW (HALFBANDWIDTH) | 6.5 nm | 6.5 nm | 6.5 nm |
| CWL (CENTRAL WAVELENGTH) | 500,7 nm | 500,7 nm | 500,7 nm |
| AR-COATING | Reflex-Blocker™ hard coated, planeoptically polished | Reflex-Blocker™ hard coated, planeoptically polished | Reflex-Blocker™ hard coated, planeoptically polished |
| SPECIAL FEATURES | CMOS-optimized with Life-Coat™ | CMOS-optimized with Life-Coat™ | CMOS-optimized with Life-Coat™ |
| FILTER USAGE |
CMOS
CCD
O-III
|
CMOS
CCD
O-III
|
CMOS
CCD
O-III
|
| FILTER MOUNTED | Mounted (LPFC 6mm) | Mounted (LPFC 6mm) | Unmounted |
| TYPE OF FILTER | f/2 Highspeed | f/2 Highspeed | f/2 Highspeed |
| SINGLE OR SET? | Single Filter | Single Filter | Single Filter |
| FILTER SHAPE | round | round | round |
Available in other sizes and formats. If you do not find the size you want, contact us at info@lunatico.es.
